Car DVR Registrator Digital Video Recorder Camcorder Dash Camera Cam 1080P Night Version Novatek 96658 IMX 322 323 JOOY A1 WiFi


Car DVR Registrator Digital Video Recorder Camcorder Dash Camera Cam 1080P Night Version Novatek 96658 IMX 322 323 JOOY A1 WiFi

SKU: aliexpress#32587756147 Category: Tags: ,


The videos will be better than the sample video .If you want the
video in SD card ,contact with us ,please .

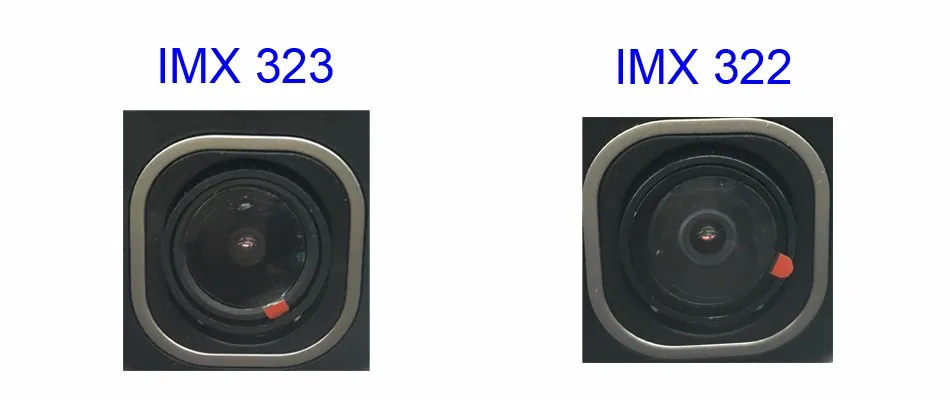

IMX 322 is lacking on the market now . The suppliers of IMX 322 are updating it to IMX 323
sensor , we had updated the camera and glasses too , the video quality is almost the same
as IMX 322 sensor we sold before . Do not worry about the quality . We have a few IMX 322
car DVR in our stock , the orders from 02/10/2016 , we will ship the car DVR to you
randomly.Most of buyer will get the IMX 323 sensor camera .
The 3M tape is BLACK now ! (Just for universal car DVR )

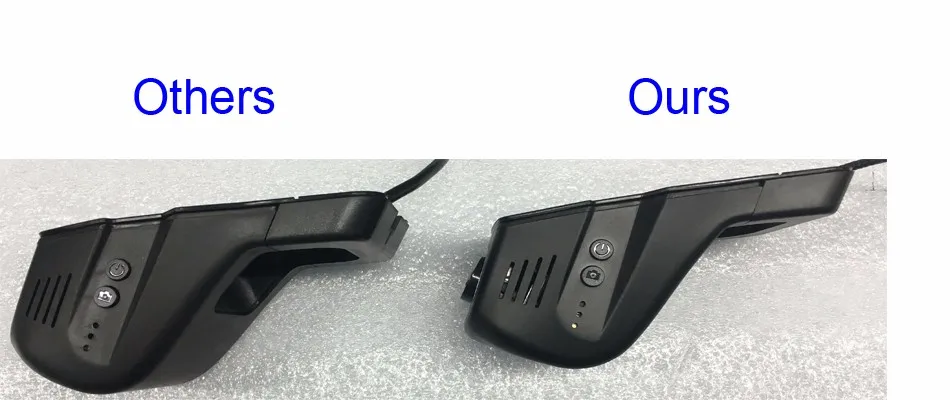

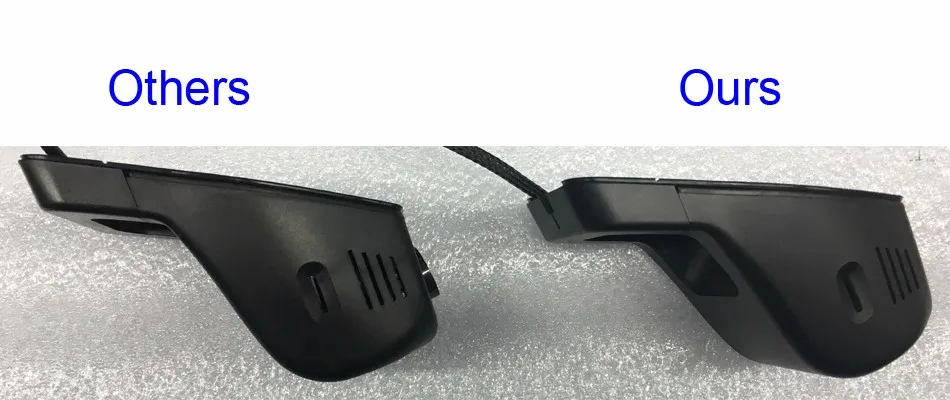

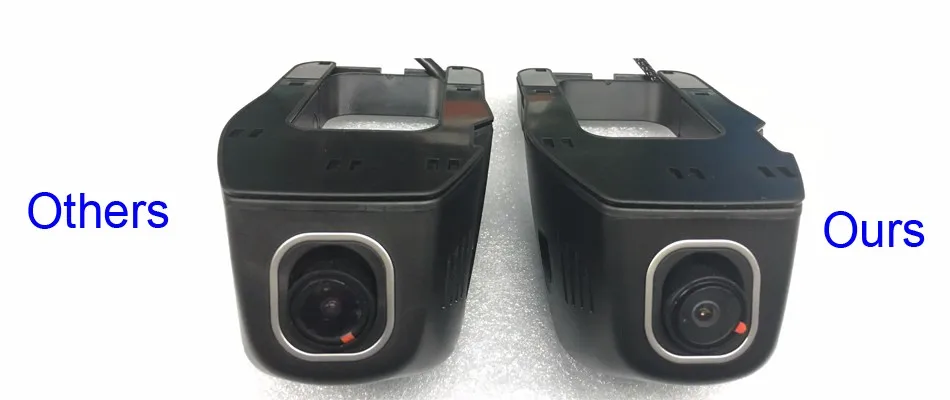

Why our cost is higher than the others ? Our quality is not as the same as the cheaper one !

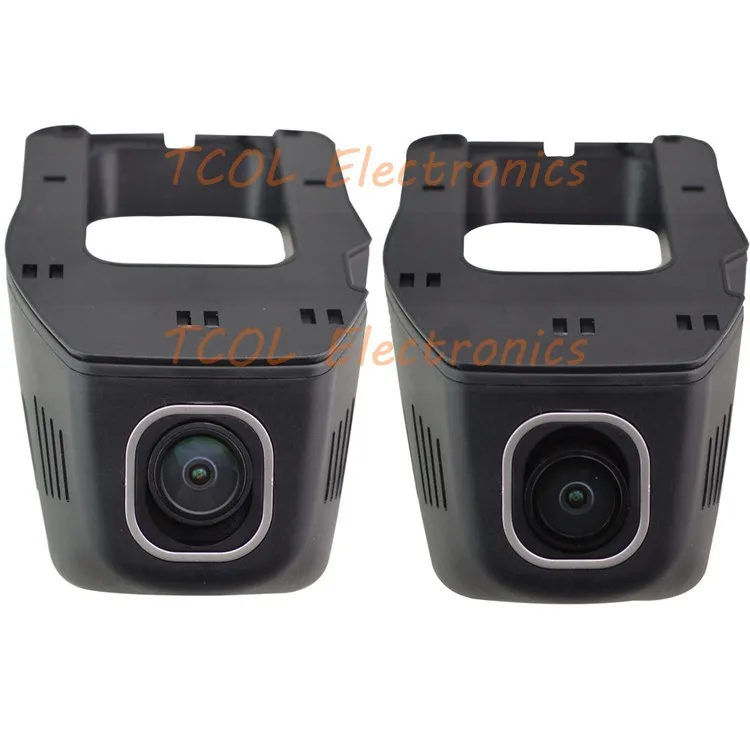

ours with cheaper 1
ours with cheaper 2
customize outer case ,make it more beautiful and high quality ,the cost is higher .

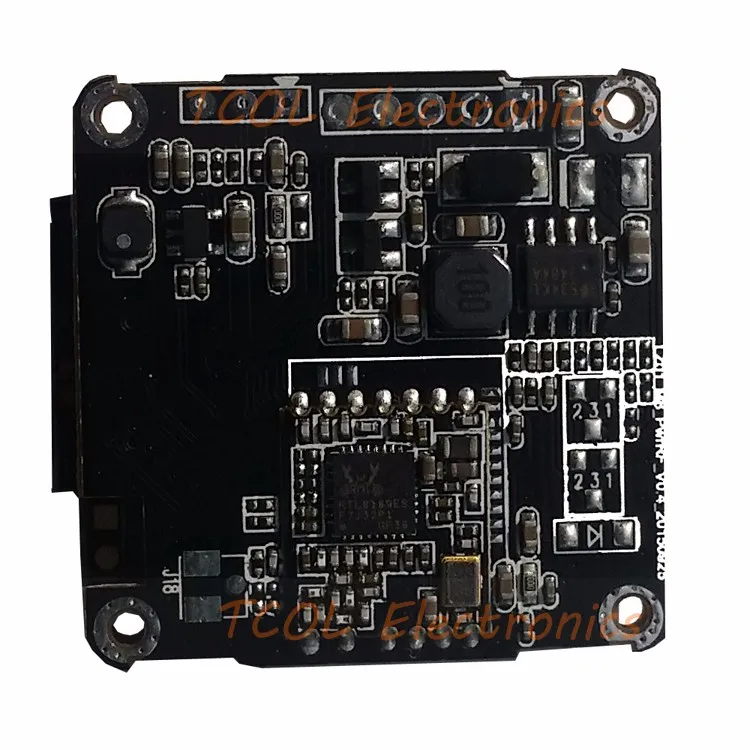

96658 main board , the cost is higher than 96650 or 96655 main board .
JOOY A2 1080P Car DVR with 2.45 Inches IPS Screen
A2 R

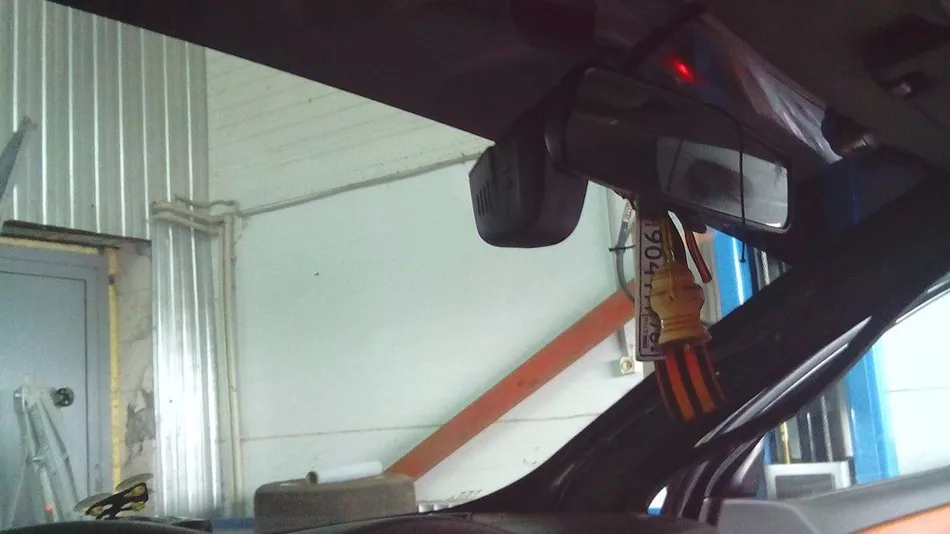

Non-destructive Installation
Designed for the original car style, Do not block the line of sight, Take power from the
fuse box, Fix the wires, Integration with the vehicle. It will work when you start your
car and stop when you unplug your car key, No built-in lithium battery, avoid battery
explosion risk.
Fit for 80% cars
It can fit for 80% cars without Auto-dimming rearview mirror or Auto-sensing
wipers, support to adjust the camera angle (up or down),choose the best angle for your
car, Removable panel, install and uninstall easily .
Adjust the camera angle (up or down)

Removable panel

Novatek 96658, Loop Recording
Novatek 96658, powerful IC, Loop Recording, you can set the video fragment as 1
minute / 2 minutes / 3 minutes, overwrite the fragments recorded before, if the storage is
full . Support 8G – 32G C10 Micro SD card .

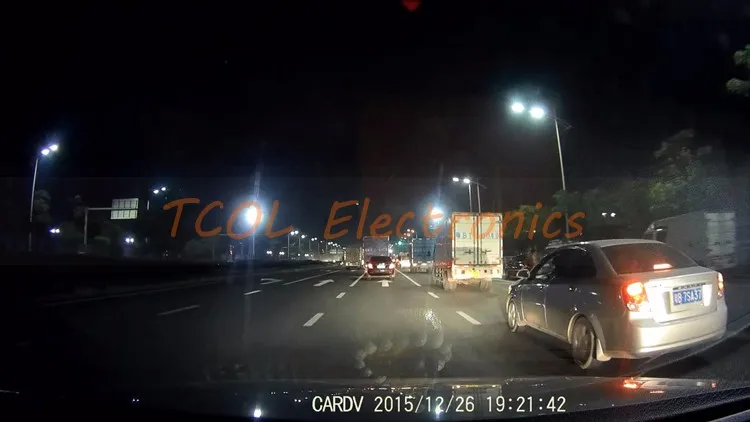

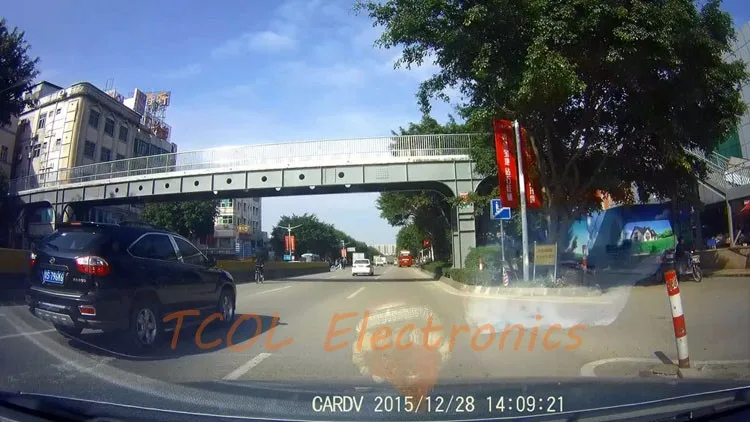

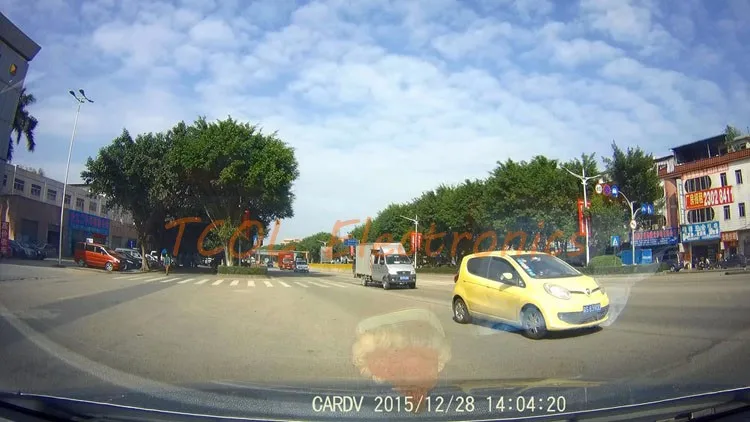

1080P Video, Full HD resolution, Wide view
SONY IMX 322 /IMX 323 1/3 CMOS sensor, support WDR, 155 degree, F2.0 , 6 pieces glasses
camera, high day and night vision quality .
The real pictures are better than the pictures , we hope you can understand that .
Support iOS and Android APP manipulation
Built-in WiFi module, REALTEK RTL8189ES, you can watch the recorded videos,
download the videos ,share the videos from the DVR to your Android phone or iPhone,
just via WiFi, not waste your internet flow. You can search FinalCam ,Lercenker in APP Store or
Play Store.

Lercenker APP Show

Built-in G-Sensor
Built-in G-Sensor, Save the important video when crash,sudden braking to a special
folder to avoid it was overwrote .
Support AV-OUT
Support AV-OUT, can connect with Car DVD player,share the video to the display ( the
player should support AV-IN and install the app),real-time display .
DVD player
Pass EMC and CCC, High and low temperature test
With ESD IC, air static ±15KV ,contacting Static ±8KV
Anti-inrush, bear 70V Shock pulse.
Automatic fuse circuit, anti-reverse connection , protect your Car battery

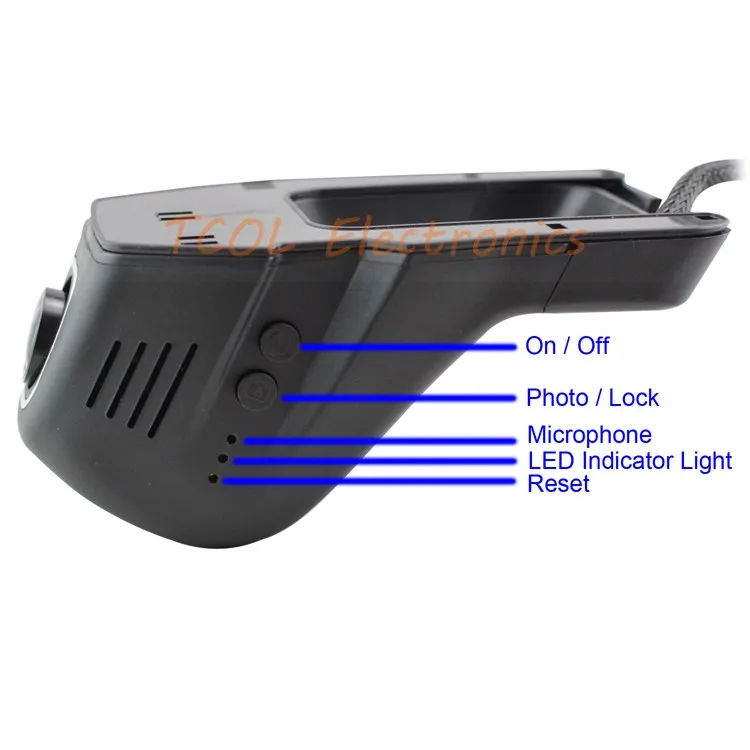

Keys :

Wires :

What in the box ( without gift ):

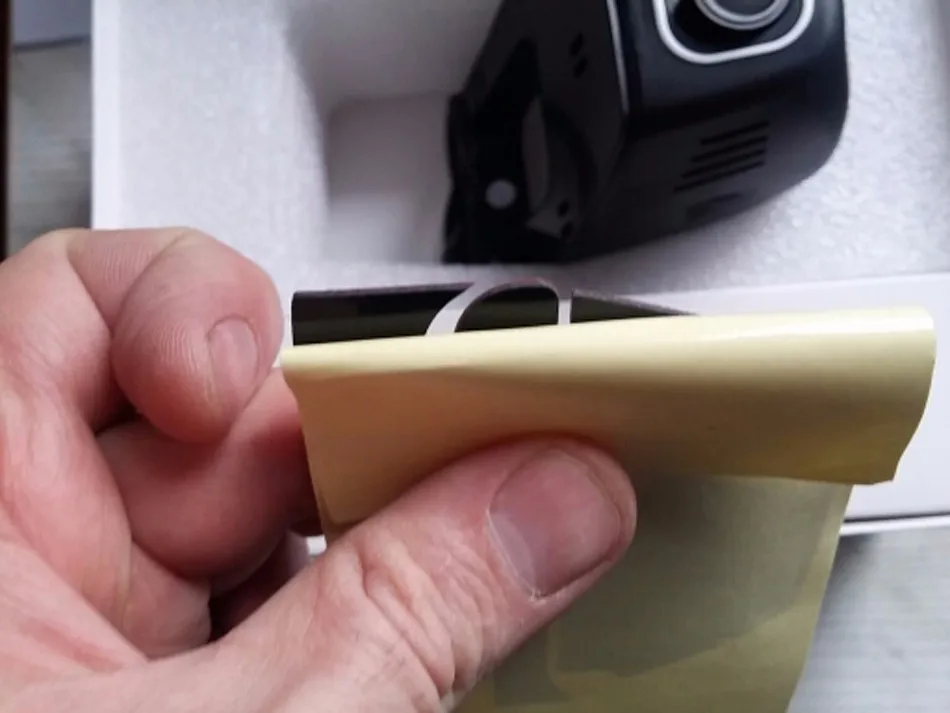

New 3M tape

New 3M Tape

CPU: Novatek 96658
Sensor : SONY IMX 322 / IMX 323 , 2.0M
Recorder: 1920*1080 30fps
Audio : Built-in Microphone
Video format: MOV
Picture format : JPEG
Recording Resolution : 1920*1080
Picture Resolution : 4 M
Fragment : 1 minute/ 2 minutes / 3 minutes
Storage : C10 TF card ( 2G – 32G)
Material: ABS+PC+PP
AV-OUT: Support NTSC/PAL AV-OUT (output to
the devices what can connect with it )
WiFi : REALTEK RTL8189ES ,802.11 b/g/n
Working Current: 180-220 mA
Standby Current : 6-12 mA
Supply voltage : DC 12V
APP language: English , Chinese
working temperature : -20 – 70 Centigrade
Working humidity: 15-85% RH

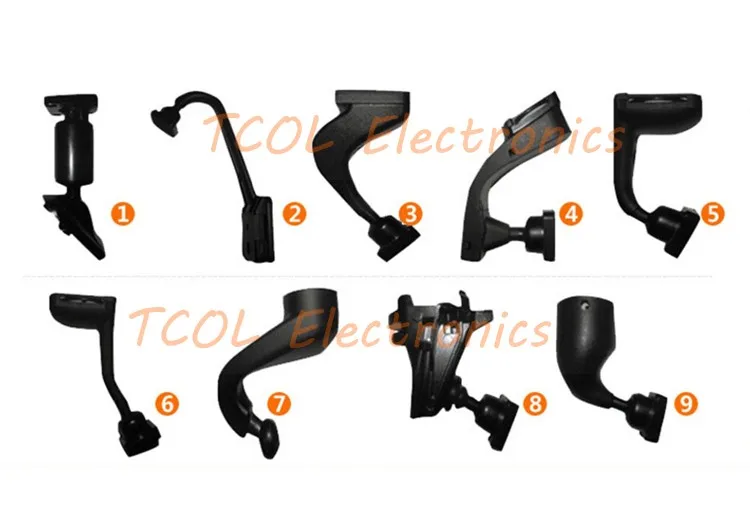

It can fit for the Rear view mirror brackets as the below
Show the pictures of your car bracket to us or see the size
of the car DVR to confirm that before ordered,please.
3,4,5,7 bracket,it may not fit perfectly.

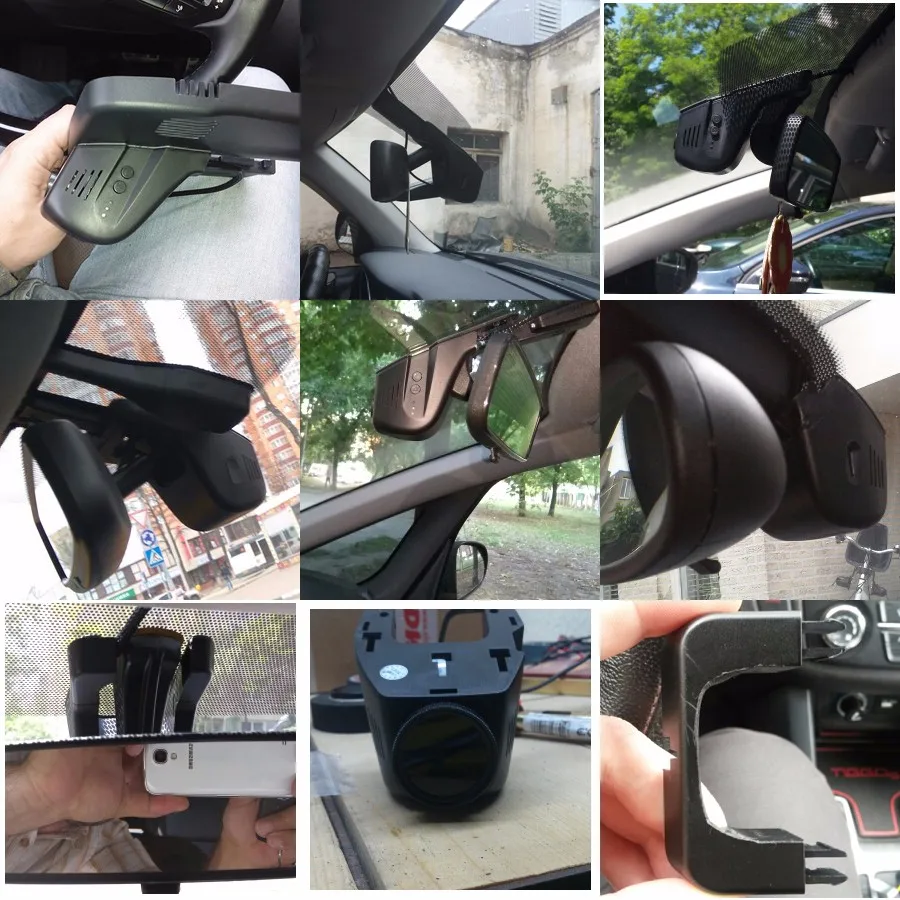

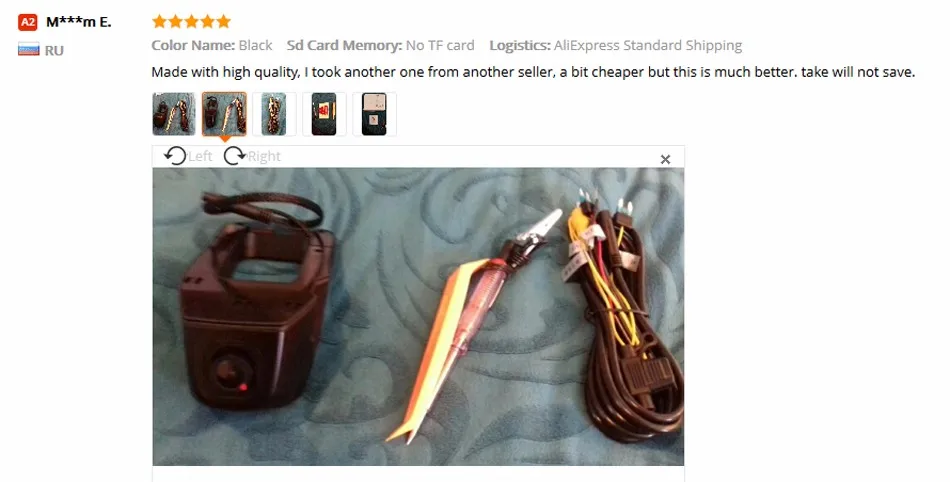

The good ideas form our buyers !
Free Gifts
We do not accept the dispute about the gifts ,they are free .

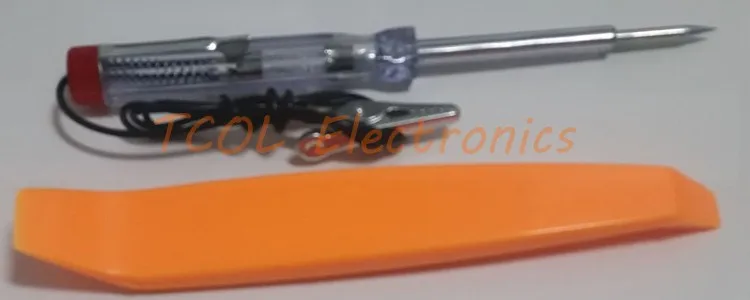

the plastic pry tool and DC 6V-12V-24V electro probe .
We had two kinds of the electro probe ,random send .
We offer the plastic pry tool and DC 6V-12V-24V electro probe for car to you as the gifts
,we do not accept the dispute about the gifts ,they are free .You can install the car DVR
by yourself .

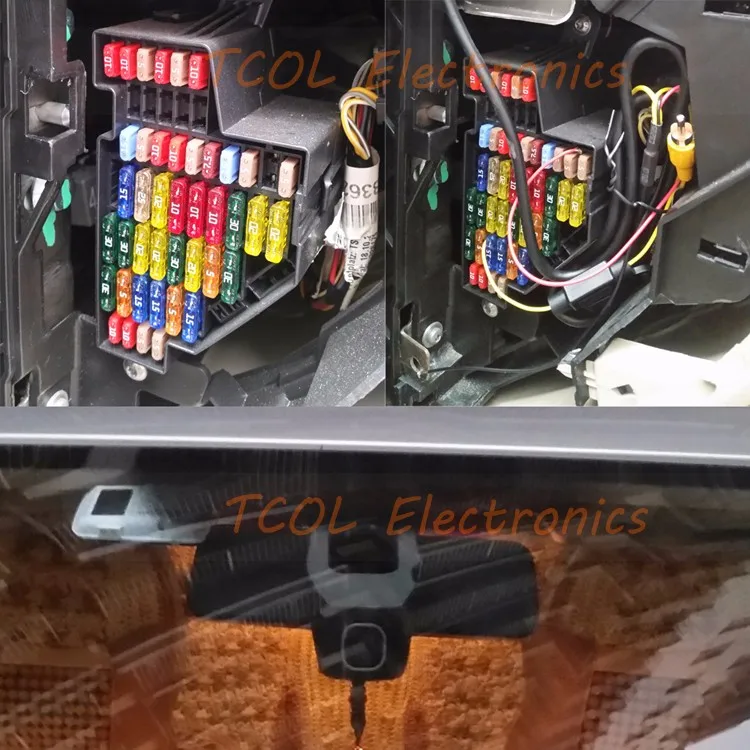

1.Follow the manual of your car or search the information from internet to find your car
fuse box ,open the box with the plastic pry tool (if you have to use it ).
2.Use the electro probe ,find the ACC power fuse and Constant power fuse ,we
recommend you use reading lamps , headlights, tail lamps , turn signals, power windows
fuse to supply for the Constant power (if they are constant power fuse ).
ACC power: When you plug your car key then turn it to ACC ,the power will work .if you
turn your car Key to Lock or unplug your can ,the power will be off .Connect the red wire
(ACC) with the ACC power fuse .
Constant power : plug or unplug your car key ,the power is uninterrupted .Connect the
yellow wire ( B+ ) with the Constant Power fuse .
3.For some cars ,you have to cut the wires , refit them then connect them with the car
fuses .Then plug the fuse to where it is .The GND wire (black ) to connect it with steel
plate or screw .
4.Connect the car DVR with the wires ,then turn your car key to ACC ,test the car DVR
can work or not .Connect your smart phone with the car DVR via WiFi ,open the app as
FinalCam to manipulate the car DVR and find the best installation position .
5.Stick the car DVR on windshield by 3M glue ,then fix the wires ,finish the
installation , feel at ease to use .
